Produktdetails

• System
• Main Processor
• Industrial embedded micro-processor
• Operating System
• Embedded Linux
• Operation Interface
• Web; local GUI
• Perimeter Protection by Camera
• Performance
• 16/20/20 channels
• AI Search
• Search for pictures by channel, time and event type
• Face Recognition by Camera
• Performance
• 14 channels
• Face Attributes
• 6 attributes: Gender; age; glasses; expression; mouth mask; beard
• AI Search
• Search for pictures by channel, time and face attributes
• SMD Plus by Camera
• Performance
• 16/32/64 channels
• AI Search
• Search by target classification (human, vehicle)
• Video Metadata by Camera
• Performance
• 16 channels
• Human Body
• Top; top color; bottom; bottom color; hat; bag; gender; age; umbrella
• Vehicle
• Plate No.; type; color; vehicle type; logo; plate color; ornament; calling; seatbelt; region
• Non-motor Vehicle
• Type; color; number of passengers; helmet
• AI Search
• Supports searching for target video by metadata
• ANPR by Camera
• Performance
• 4 channels
• Stereo Analysis by Camera
• Performance
• 16 channels
• AI Search
• Search by target classification (fall detection; people approach detection; people No. exception detection; people staying detection; violence detection)
• Video
• Access Channel
• 16/32/64
• Network Bandwidth
• 320 Mbps for access, 320 Mbps for storage and 320 Mbps for forwarding
• Resolution
• 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more
• Decoding Capability
• 16-channel@1080P (30 fps)
• Video Output
• HDMI1: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720
• VGA1: 1920 × 1080; 1280 × 1024; 1280 × 720
• HDMI2/VGA2: 1920 × 1080
• VGA1/HMDI1 homologous output, VGA2/HDMI2 homologous output, and VGA1/HDMI1 and VGA2/HDMI2 supports heterogeneous output
• Multi-screen Display
• 1st Screen: 16-channel: 1/4/8/9/16
• 32-channel: 1/4/8/9/16/25/36
• 64-channel: 1/4/8/9/16/25/36/64
• 2nd screen: 1/4/8/9/16
• Third Party Camera Access
• Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and more
• Compression
• Video
• Smart H.265+; Smart H.264+; H.265; H.264; MJPEG
• Audio
• PCM; G.711A; G.711U; G.726
• Network
• Network Protocol
• HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, and more.) ; P2P
• Mobile Phone Access
• Android; iOS
• Interoperability
• ONVIF (profile T/S/G); CGI; SDK
• Browser
• Chrome; IE9 or later; Firefox
• Record Playback
• Multi-channel Playback
• 1/4/9/16
• Record Mode
• Manual; schedule (general; MD; alarm; MD & alarm; intelligent; POS)
• Storage Method
• Local HDD and network
• Backup
• USB device
• Playback Function
• 1. Play; pause; stop; fast forward; fast backward; rewind; play by frame
• 2. Full screen; backup (cut/file) ; partially enlarge; audio on/off
• Storage
• Disk Group
• Yes
• Alarm
• General Alarm
• Motion detection; privacy masking; video loss; local alarm; PIR alarm; IPC alarm
• Anomaly Alarm
• Camera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomaly
• Intelligent Alarm
• Perimeter protection; face detection; face recognition; SMD; video metadata (human; motor-vehicle; non-motor vehicle) ; ANPR; people counting; stereo analysis; crowd distribution;
• heat map
• Alarm Linkage
• Record; snapshot; IPC external alarm output; buzzer; log; preset; email
• External Port
• Audio Input
• 1 channel, RCA connector
• Audio Output
• 2 channels, RCA connector, which supports voice intercom output
• HDD
• 8 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature. Supports hot swapping
• Alarm Input
• 16 channels
• Alarm Output
• 6 channels
• eSATA
• 1 eSATA
• RS-232
• 1 channel, used to debug and pass through serial data
• RS-485
• 1 channel, used to control PTZ, and it supports multiple protocols
• USB
• 2 front USB 2.0 ports, 2 rear USB 3.0 ports
• HDMI
• 2
• VGA
• 2
• Network
• 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports
• General Parameter
• Power Supply
• Single, 100V–240V AC, 50 Hz–60 Hz
• Power Consumption
• < 16.7W (without HDD)
• Net Weight
• 6.55 kg (14.4 lb) (without HDD)
• Gross Weight
• 9.5 kg (20.94 lb) (without HDD)
• Product Dimensions
• 440.0 mm × 452.5 mm × 94.9 mm (17.3" × 17.8" × 3.7")
• Package Dimensions
• 563 mm × 563 mm × 215 mm (22.2" × 22.2" × 8.5")
• Operating Temperature
• –10°C to +55°C (+14°F to +131°F)
• Storage Temperature
• 0°C to +40°C (+32°F to +104°F)
• Operating Humidity
• 10%–93% (RH)
• Storage Humidity
• 30%–85% (RH)
• Operating Altitude
• 3,000 m (9,843 ft)
• Certifications
• CE: EN55032; EN55024; EN50130-4; EN60950-1
• FCC: Part 15 Subpart B; ANSI C63.4-2014
• UL: UL 60950-1

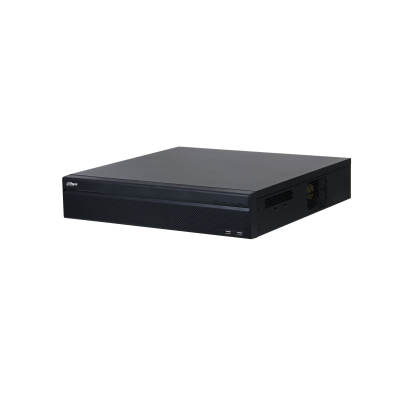

NVR5816/5832/5864-4KS2
